Secondary Glazing Acrylic Window Kit

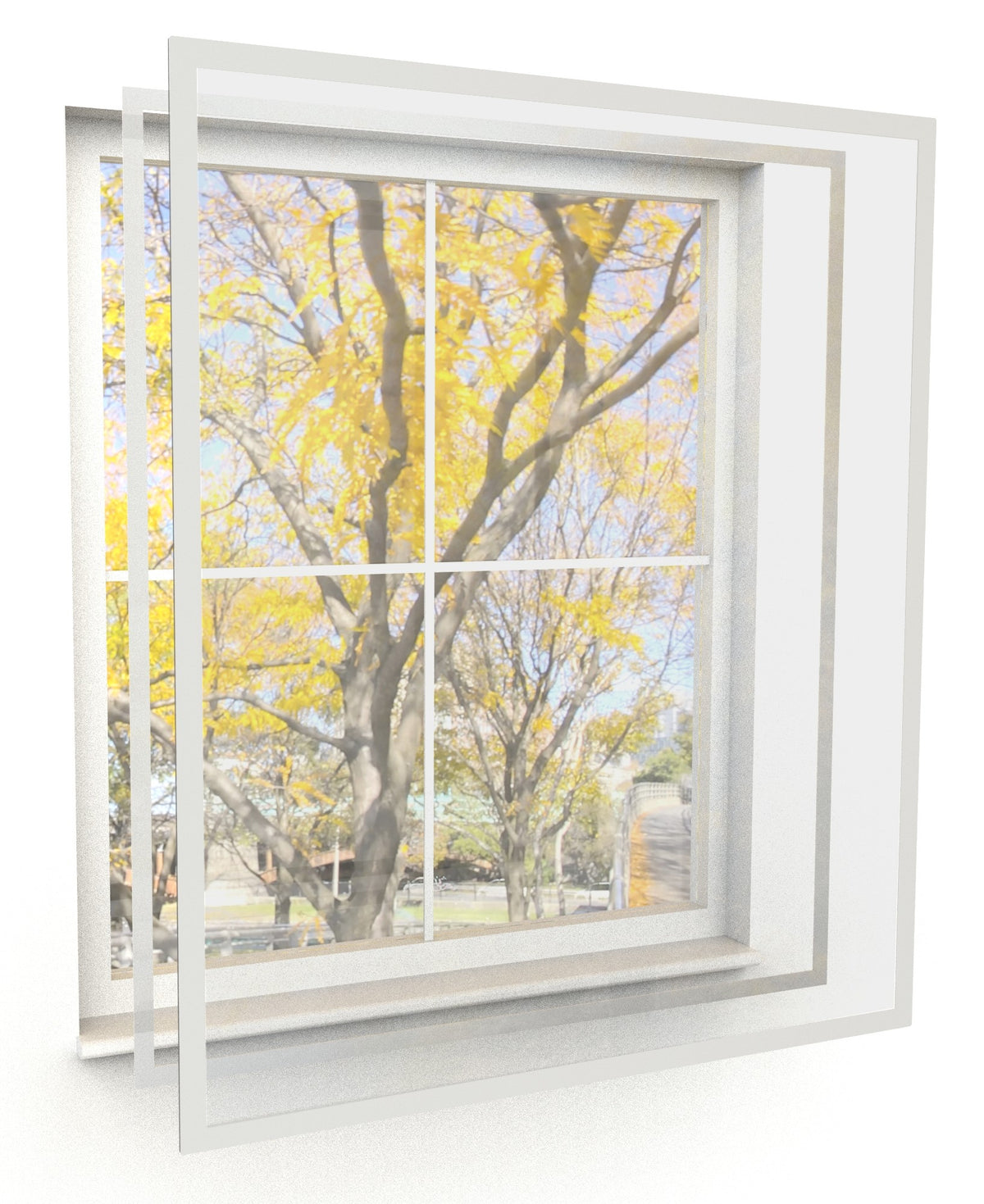

Secondary Glazing Magnetic Windows are a removable panel system fitted inside an existing window. Our Glazing Panels are constructed from 4mm Clear Acrylic and a coloured 25mm wide edge is applied to obscure the magnetic strip and adhesive from view.

Pre-applied premium magnetic strips ensure a good seal with minimum installation time.  We manufacture our own premium colour-coordinated stainless steel strips to guard against corrosion, and pre-apply a thick very high bond adhesive tape to ensure a adhesion to a suitably prepared window frame.

Our secondary glazing has been designed and made in our factory, using pre-applied premium materials to reduce your time and ease of installation. We do not supply common Ferrous metal tape compared to other sellers of secondary glazing kits, as in our experience it does not provide a good magnetic surface or adhere well to window frames and the tape can curl, which makes it unsuitable for this application.

Each panel is supplied in its own cardboard sleeve and named with the room reference you provide, so that you can remove the panels in the warmer months and easily store and protect them for the following winter.

Benefits of Acrylic Secondary Glazing:

• Cost effective
• Easy installation

Please note:
The fitting instructions specify a 10mm allowance between the acrylic and surrounding walls. If you are unsure how to apply this to your measurements, send a dimensioned photo or drawing before ordering; do not guess or deduct the allowance twice.

For Polycarbonate Secondary Glazing or additional colours, we can provide bespoke solutions - please enquire to our team.

Specifications

Standard Specification For Stainless Steel Strips:
Width 20mm
Thickness: 1.2mm
Adhesive: Very High Bond Tape 1mm thick
Colour Applied: Matt White. Suitable for Painting if desired.

Standard Specification For Magnetic Tape:
Width 19mm
Thickness: 1.5mm
Adhesive: Premium 3M Tape
High Pull force: 180g pull force per cm length

Acrylic Border:
A 25mm wide coloured border of your choice is applied to the Acrylic to obscure the view of adhesive.

Acrylic Window Panel:
4mm Clear Acrylic
92% light transmission similar to glass.
Check the material specification for your application
Economically priced


How to install

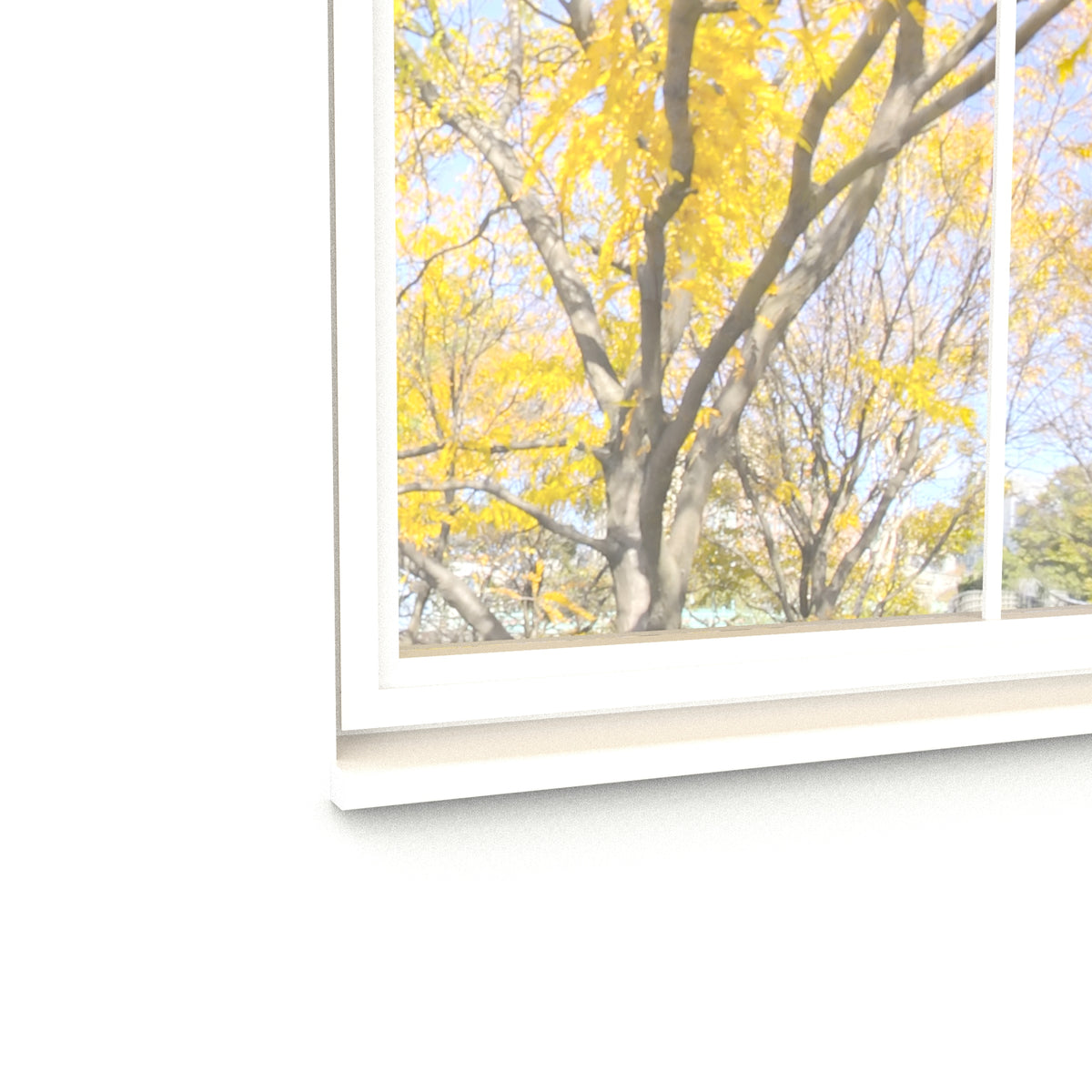

Your kit will come with pre cut coloured magnetic stainless steel strips with premium moisture resistant adhesive tape on the reverse. The quality of the adhesive allows for small height variations of the window joints. Pre cutting stainless steel provides prepared strips for fitting to the window frame.

1. Ensure your window frame is clean and dry and any flaking of paint should be made smooth prior to installation.

2. Check size and orientation of each metal strip fits the correct window before peeling.

3. Unpeel one strip at a time and press firmly onto the window frame ensuring the metal strips are placed together to form a seal. The adhesive is pressure activated, and full strength is achieved within 24 hours.

4. Place your acrylic window onto your newly installed stainless steel frame, and remove the protective film.

5. Be sure to send us a picture of your installation or within a review for the world to see your beautiful new energy efficient secondary glazing!

Care Guide

When cleaning acrylic take care to not use glass cleaner or similar products due to their abrasive nature. Use an anti-static cloth and warm soapy water or anti-static cleaner.

Performance depends on the existing window, fit and installation. No universal energy-saving percentage, noise rating or guarantee of eliminating condensation is specified here.

Ask about sizing or a bespoke glazing kit
